Additional information
| Conditionnement | Sold individually |
|---|---|
| Nombre de pixels | H1 : 1000×1500, H2 : 1300×1800 |

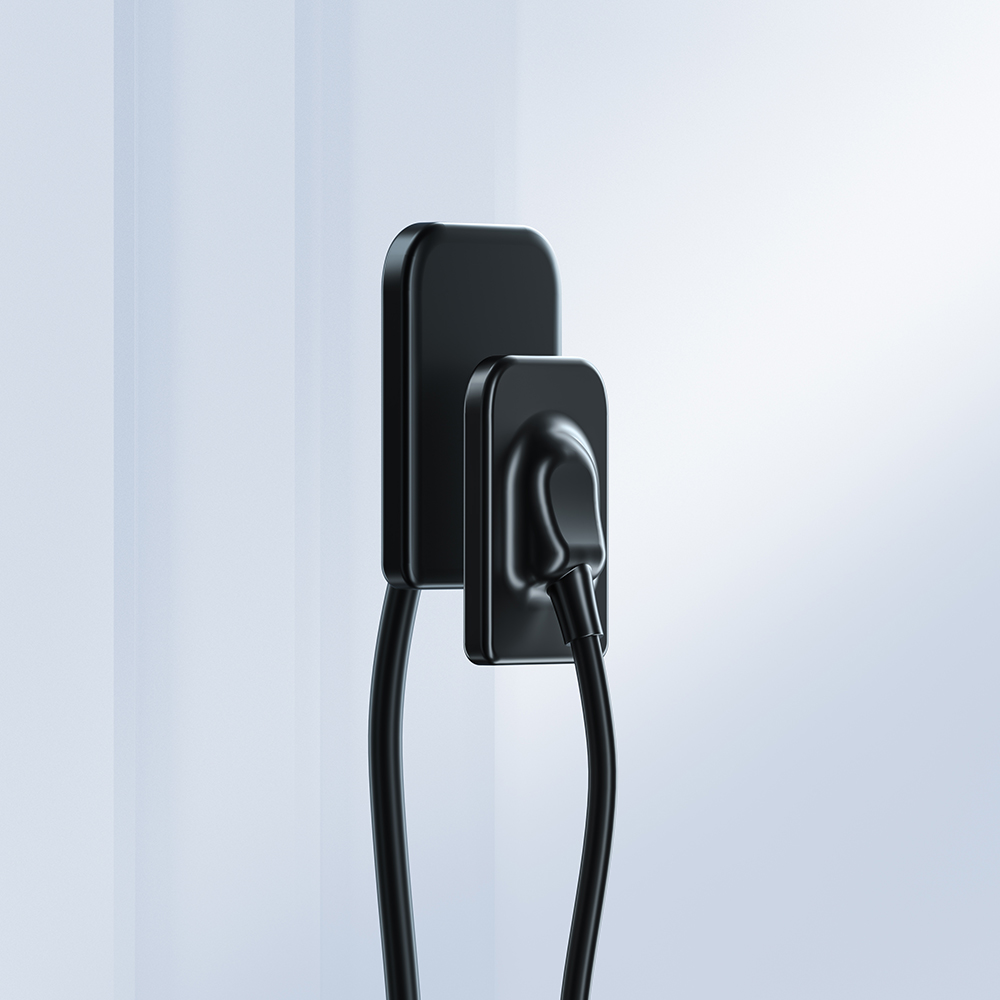

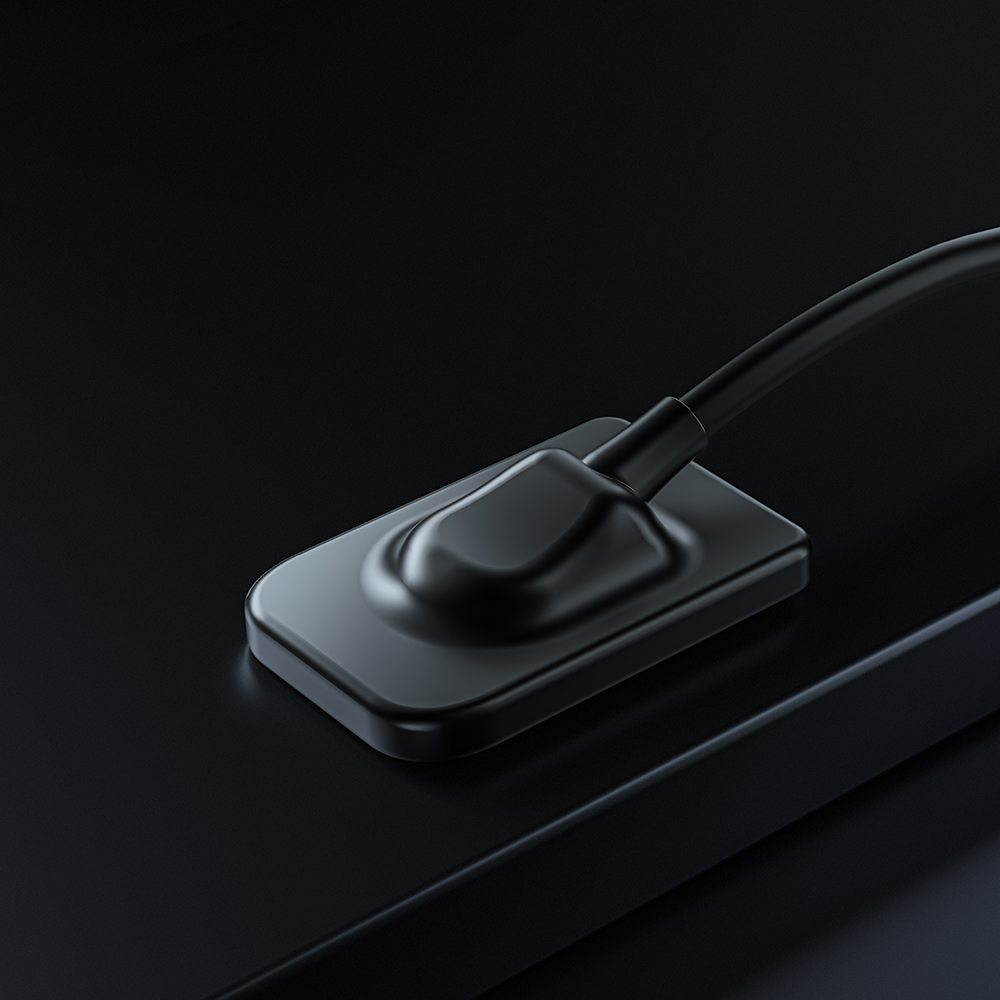

i-Sensor
Brand: WoodpeckerSensor Intra oral radio sensor
Sharp, detailed image quality and immediative visualization
- Exposure time management
- Simle, easy to use TWAIN compatible software
- Easy one click installation via USB & free upgrades
Technical specifications
- High definition 2.2 megapixel sensor
- Ultra-thin 4.4mm sensor, smooth edges and rounded corners
- 2 sizes to fit the oral cavity :
-
- H1 : 25 x 36.8 x 4.4mm (pixel matrix : 1500×1000)
- H2 : 30.4 x 41.9 x 4.4mm (pixel matrix : 1300 x 1800)
- High resolution imaging 25lp/mm (theoretical resolution)
- 16 bit ADC chip providing up to 60000+ grayscale nuances
- Technology : APS CMOS
- Scintillator : CSL
- Protection : IP68
- Cable length : 2.8m
- Driver : twain
- Single USB 2.0 direct connection
- Additional information
